Custom Injection Mold Manufacturing Services | Precision Plastic Mold Maker for High-Volume Production
- Custom Injection Mold Design & Engineering
- Single-Cavity & Multi-Cavity Injection Molds
- Family Molds & High-Output Production Tooling
- Hot Runner & Cold Runner Mold Systems
Advanced Injection Mold Design & Engineering Services
By combining advanced mold engineering, DFM analysis, and simulation technology, we optimize every aspect of the tooling process before steel cutting begins. This reduces development risks, shortens lead times, minimizes production defects, and ensures stable high-volume manufacturing.
✔ Mold Structure Optimization & Tool Life Enhancement
✔ Cooling Channel Design for Faster Cycle Times
✔ Multi-Cavity Mold Layout Optimization
✔ Hot Runner & Cold Runner System Engineering
✔ Ejection System & Slider Mechanism Design
✔ High-Volume Production Mold Validation
✔ Gate Location, Gate Type & Runner System Optimization
✔ Autodesk Moldflow Analysis & Injection Filling Simulation
✔ Warpage, Shrinkage & Cooling Analysis
✔ DFM (Design for Manufacturability) Evaluation
✔ Dedicated Mold Design & Project Engineering Support
✔ Tolerance Stack-Up & Critical Dimension Verification
Custom Injection Mold Manufacturing Services From Prototype Tooling to High-Volume Production Molds
From prototype tooling and bridge molds to complex multi-cavity production molds, we deliver complete custom mold manufacturing solutions engineered for long tool life, stable cycle times, and consistent part quality.Using advanced CNC machining, EDM machining, wire cutting, precision grinding, mold flow analysis, and expert mold assembly processes, our mold makers build tooling systems capable of producing millions of precision plastic components with exceptional repeatability.
Our Injection Molding Processes
Custom Injection Mold Manufacturing Services
Design, engineer, and manufacture precision plastic injection molds for prototype tooling, multi-cavity production molds, and high-volume OEM manufacturing with long mold life and consistent part quality.

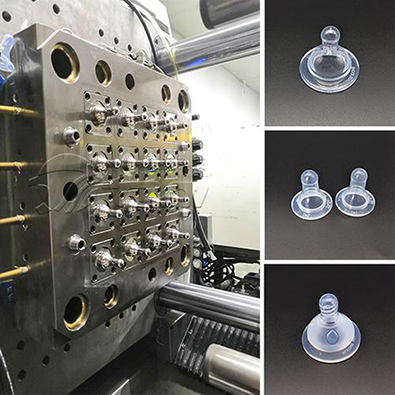

Liquid Silicone Rubber (LSR) Injection Molding Services
Produce high-precision liquid silicone rubber components with excellent flexibility, biocompatibility, heat resistance, and durability for medical, automotive, and consumer product applications.

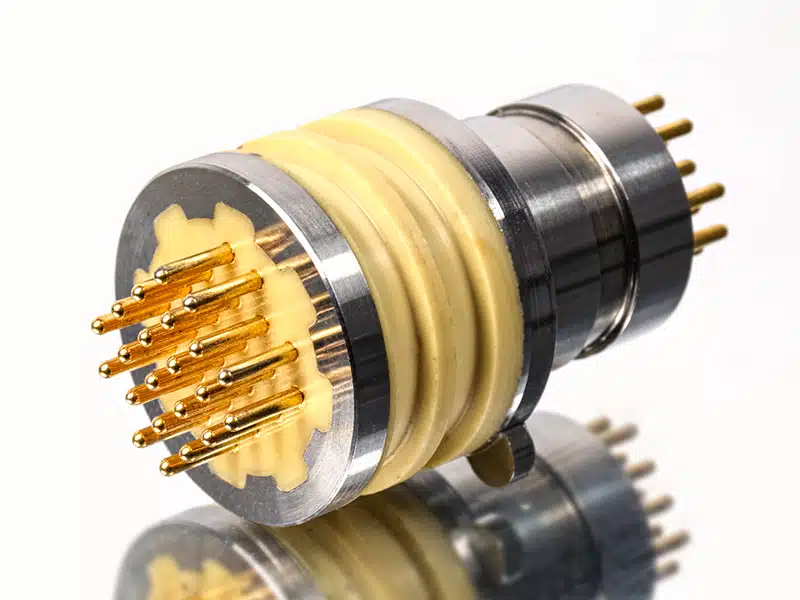

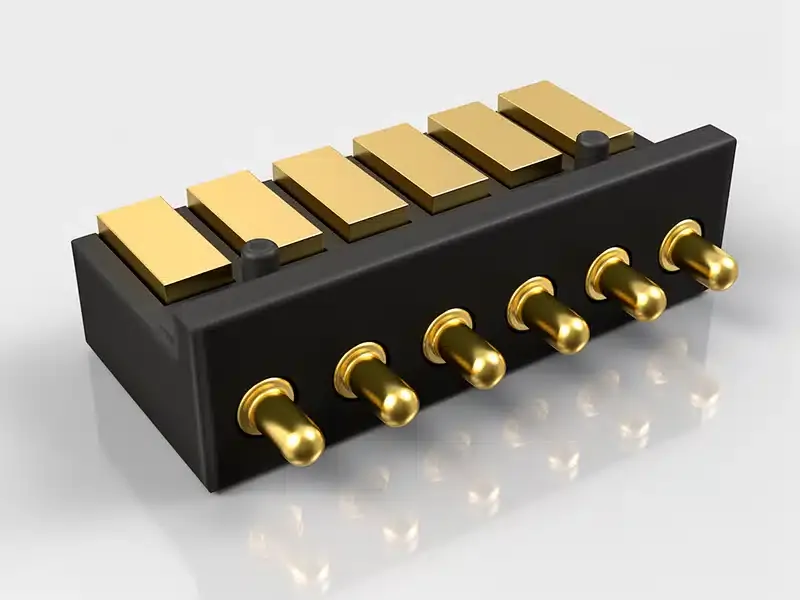

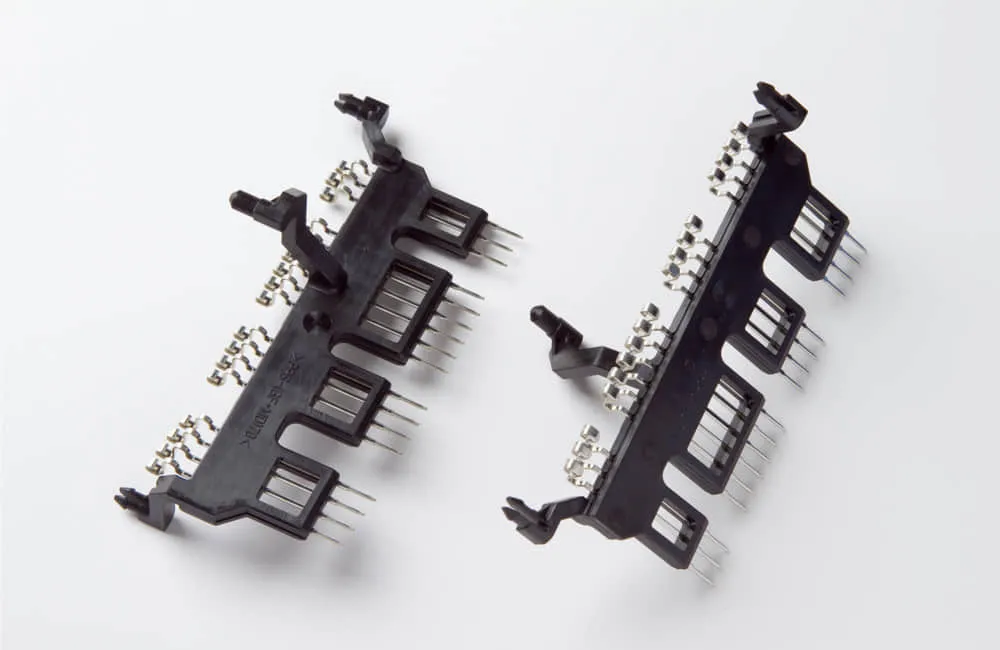

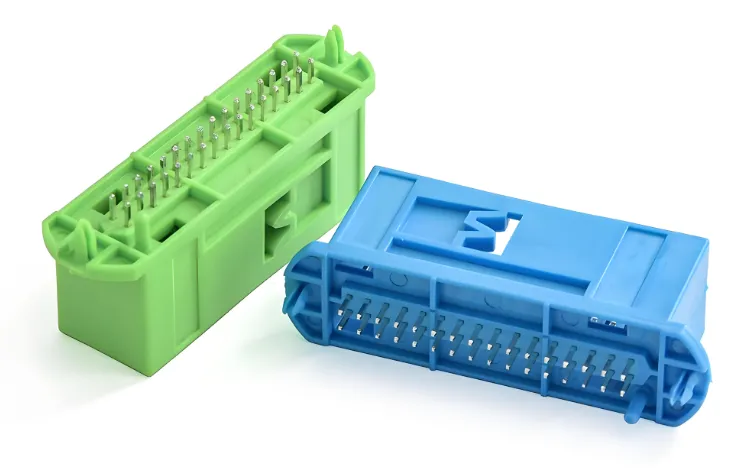

Insert Molding Services
Combine metal inserts and engineering plastics into a single molded component, reducing assembly costs while improving strength, durability, and product reliability.

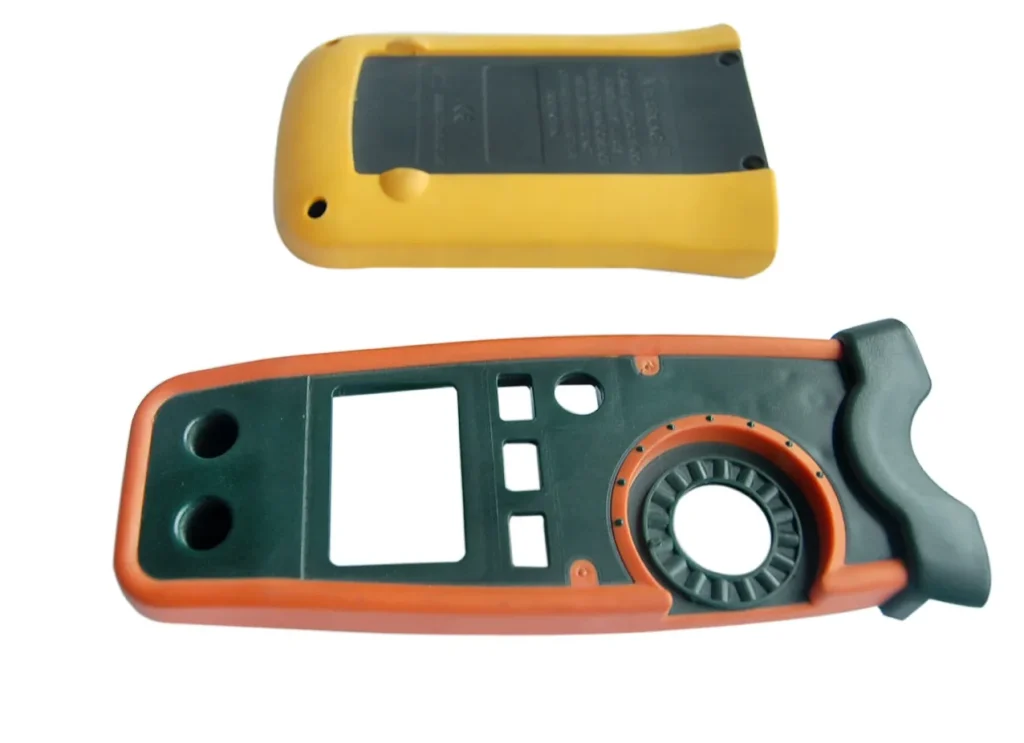

Overmolding Manufacturing Services
Create multi-material components by molding soft elastomers or engineering plastics over rigid substrates, improving grip, sealing performance, and product aesthetics.
Advanced Injection Mold Design & Precision Mold Manufacturing Engineering
Our mold manufacturing team designs and builds custom injection molds optimized for dimensional accuracy, cooling efficiency, cycle time reduction, and long-term production stability. From prototype tooling to complex multi-cavity production molds, every mold is engineered using advanced CAD design, mold flow analysis, CNC machining, EDM processing, and precision assembly technologies.

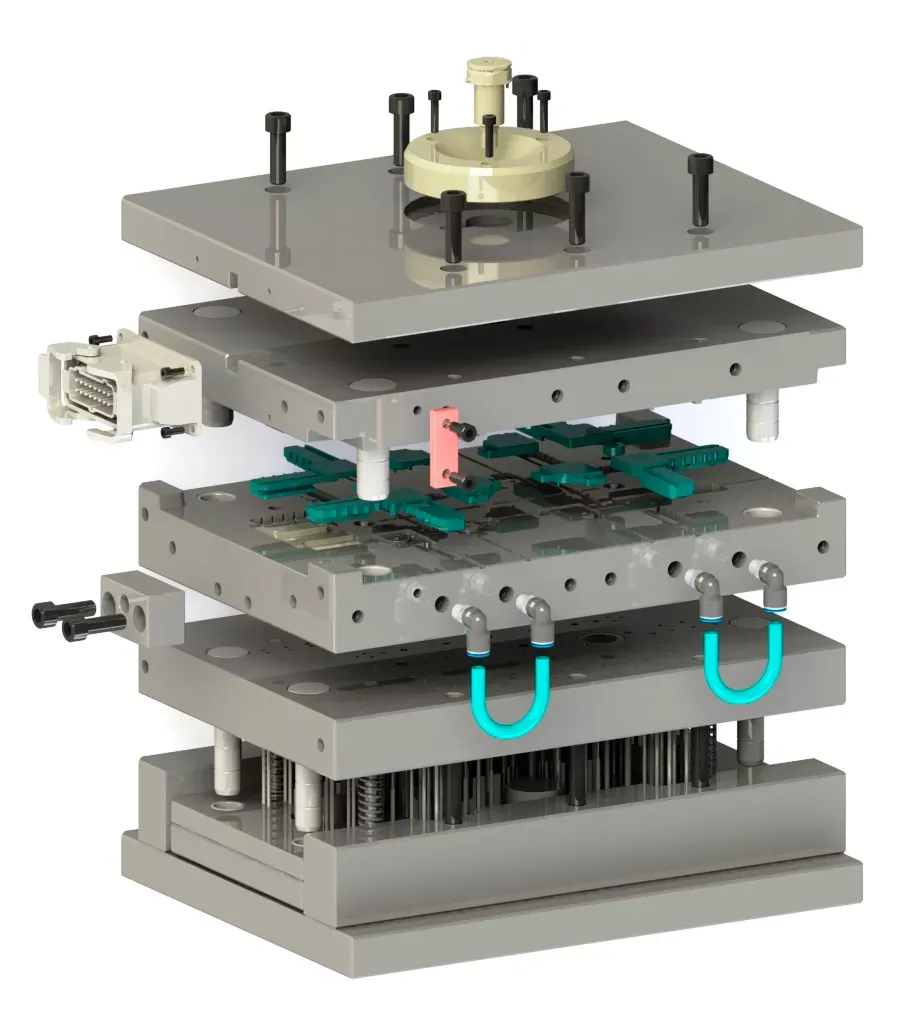

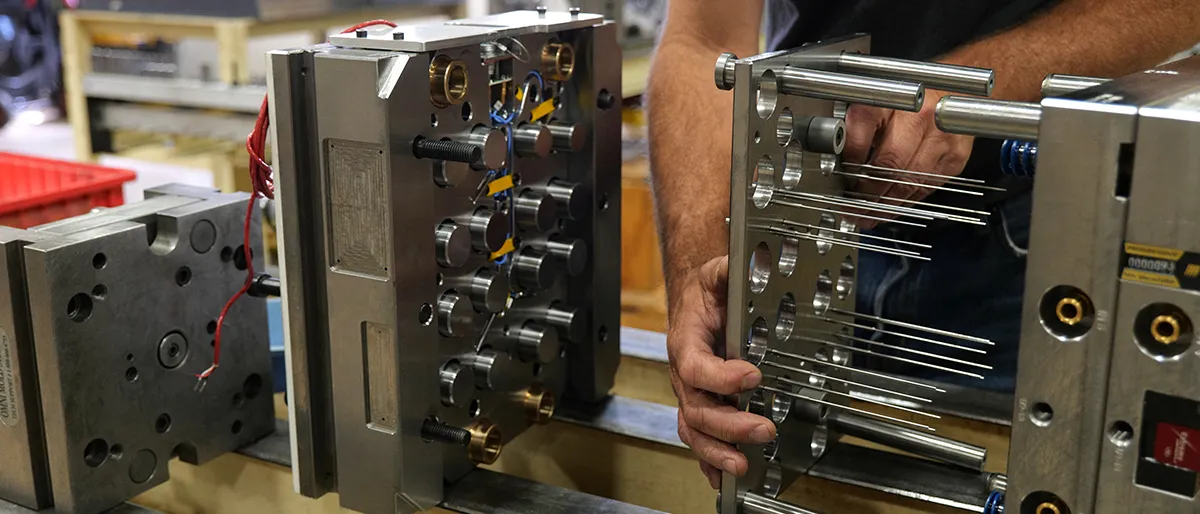

Multi-Cavity Injection Mold Design
Hot Runner & Cold Runner Systems
Advanced Cooling Channel Optimization
Slider, Lifter & Complex Core Mechanisms
High-Precision Mold Component Manufacturing
Long-Life Production Tooling Solutions
High-Volume Plastic Injection Mold Production

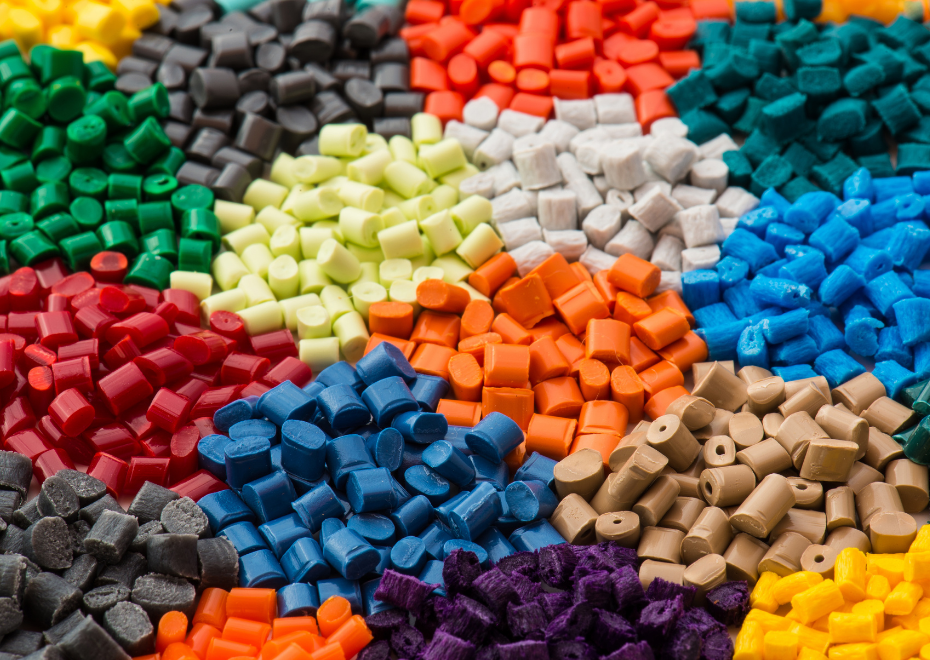

Material Selection & Engineering Review
Select the optimal plastic material based on strength, heat resistance, chemical compatibility, appearance, and application requirements. Our engineers provide DFM analysis to ensure efficient and cost-effective manufacturing.
Custom Mold Design & Tool Manufacturing
Develop precision injection molds using advanced CAD design, mold flow analysis, CNC machining, EDM processing, and mold validation to ensure consistent part quality and long-term production performance.
Precision Injection Molding Production
Engineering-grade plastic resins are melted and injected into precision molds under controlled pressure and temperature, producing complex plastic components with excellent dimensional accuracy and repeatability.
Part Ejection, Quality Inspection & Finishing
Finished parts are automatically ejected, inspected, and processed through trimming, assembly, surface finishing, and quality control procedures to ensure production-ready components meet customer specifications.

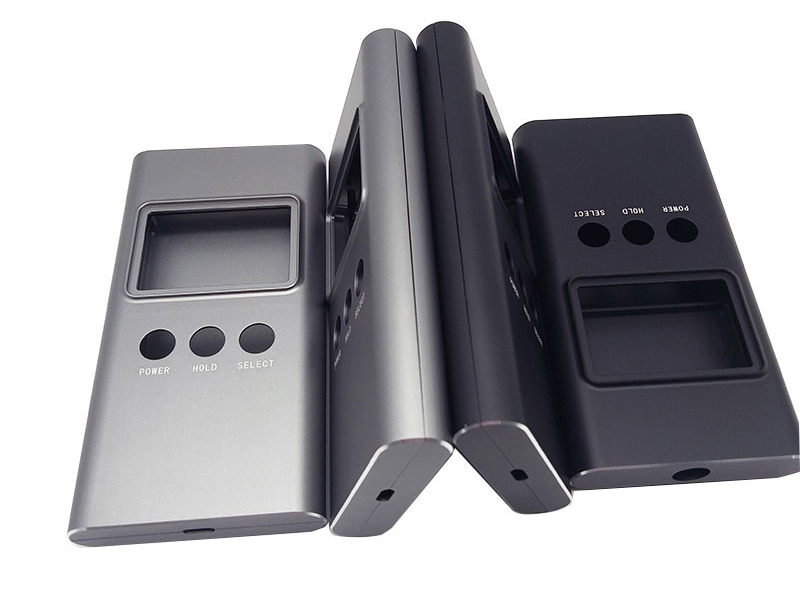

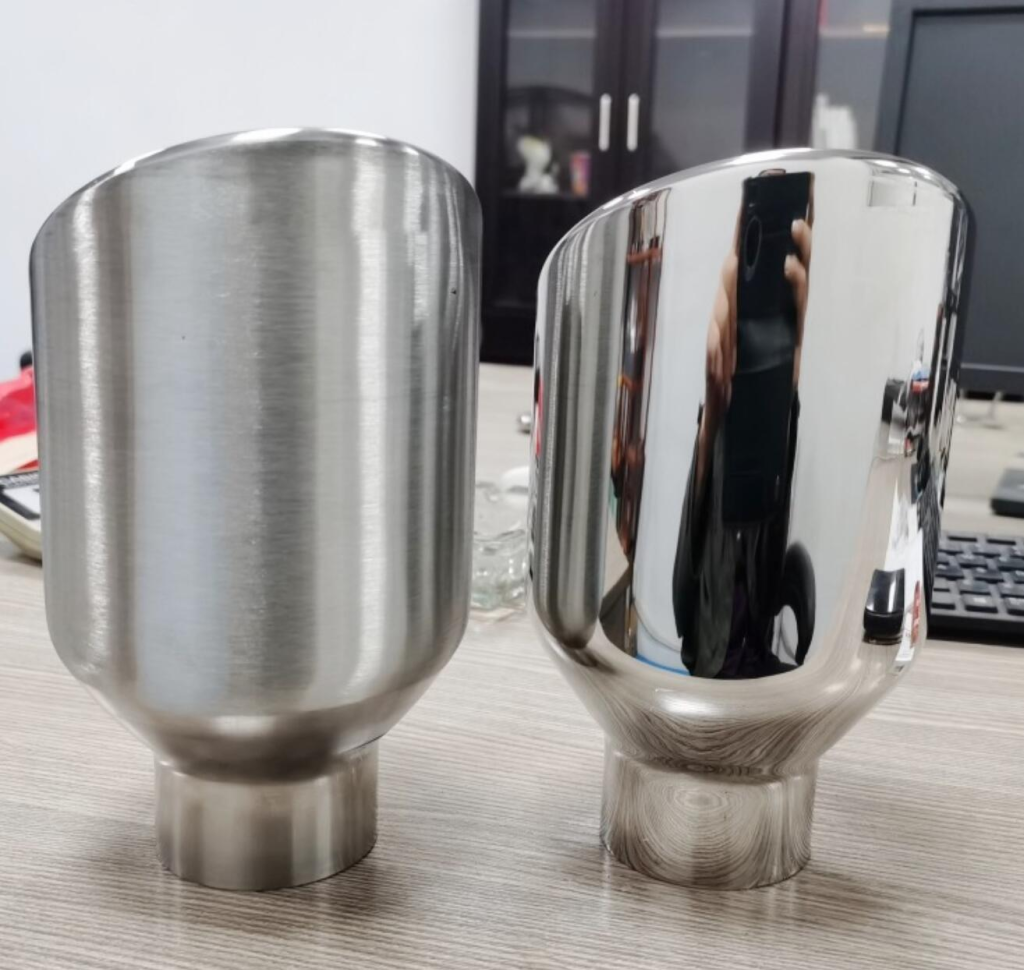

High Gloss Polishing
Mirror-Like Surface Finish for Premium Consumer Products
Achieve a flawless high-gloss appearance with precision polishing services. Ideal for consumer electronics, medical devices, automotive interiors, and luxury plastic components requiring exceptional visual quality and premium aesthetics.

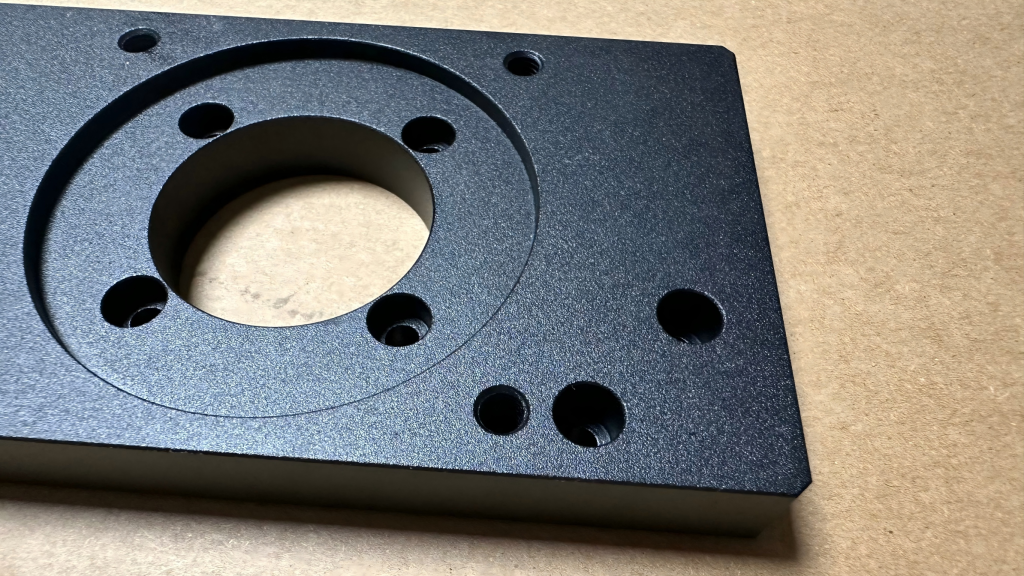

Matte Surface Finishing
Professional Anti-Glare Surface Treatment
Create a smooth, low-reflection surface that minimizes fingerprints, scratches, and visual imperfections. Perfect for industrial equipment, medical housings, and consumer products requiring a modern, sophisticated appearance.
Textured Mold Finish
Enhanced Grip, Durability & Visual Appeal
Custom mold texturing improves product aesthetics while enhancing scratch resistance and tactile performance. Widely used in automotive interiors, handheld devices, consumer electronics, and industrial plastic components.

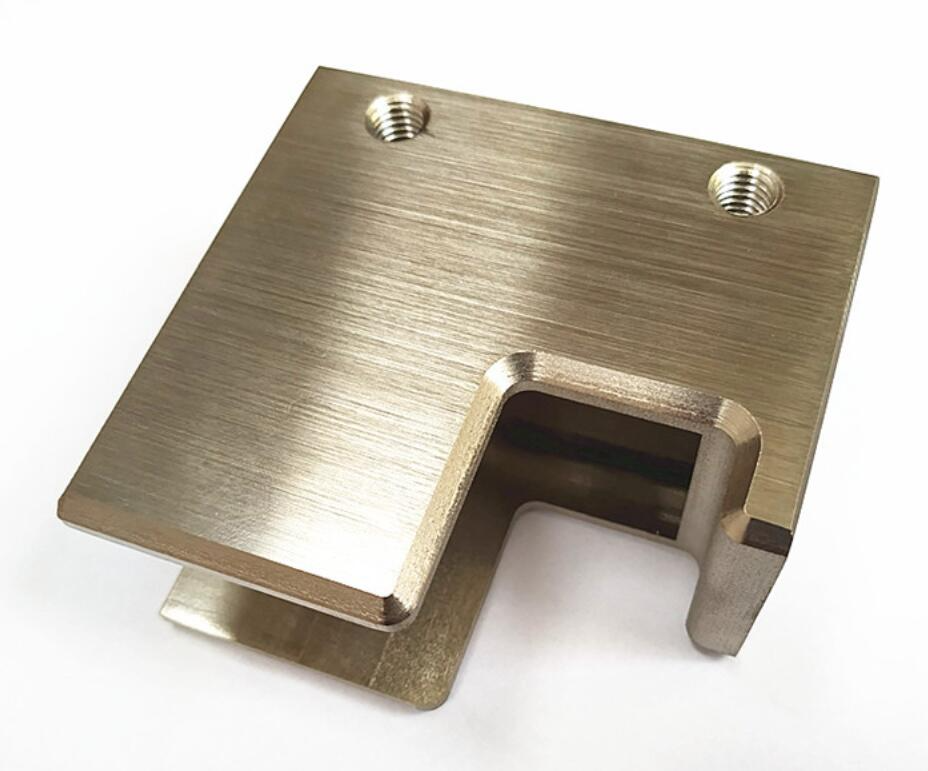

Brushed Metallic Appearance
Metal-Like Finish Without the Weight or Cost
Deliver a premium metallic look on injection molded plastic parts through advanced finishing technologies. Ideal for consumer electronics, automotive trim, appliances, and high-end product enclosures.

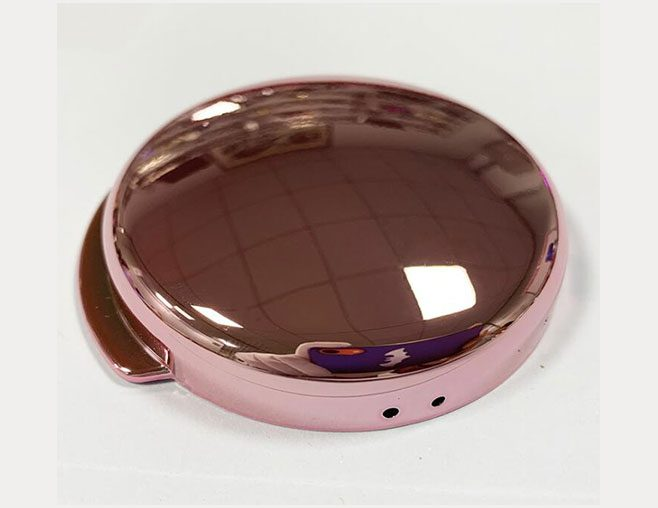

Metallic Coating
Premium Metalized Surface for High-End Applications
Apply decorative or functional metallic coatings that improve appearance, durability, EMI shielding capability, and perceived product value. Suitable for automotive, medical, consumer electronics, and industrial applications.
Color Matching & Custom Painting
Precision Color Control for Brand Consistency
Custom painting and color matching services ensure consistent product appearance across production batches. Support Pantone, RAL, and customer-specific color requirements for OEM and branded products.
Scratch Resistant Coating
Long-Lasting Surface Protection for High-Wear Applications
Advanced protective coatings improve scratch resistance, abrasion resistance, and surface durability. Ideal for medical devices, automotive components, electronic housings, touch panels, and industrial equipment exposed to daily wear.
Looking for a Competitive Mold Manufacturer? Let's Discuss Your Project.
Precision Mold Design Services — Custom Tooling & Mold Manufacturing Capabilities
| Service | Description | Benefits |
|---|---|---|
| Custom Plastic Mold Design | Tailored mold solutions using advanced CAD/CAM software. | Supports high precision injection molding production. |
| Mold Flow Analysis Services | Simulation of filling, weld lines, air traps, shrinkage, warpage, and cooling performance. | Reduces mold trial risk and development cost. |
| Injection Mold Design | Design of cavities, runners, gates, cooling systems, sliders, lifters, and ejection systems. | Improves mold reliability and production efficiency. |
| Injection Tooling Design | Complete injection tooling design including mold base, cavity/core, runner system, hot runner, cooling, ejection, and mold components. | Ensures stable tooling performance for long-term mass production. |
| Insert Mold Design | Mold design for metal inserts, terminals, pins, magnets, coils, and electronic components. | Ensures insert stability and precision molding quality. |
| Micro Mold Design | Micro injection mold design for miniature plastic parts, micro gears, micro holes, and micro features. | Supports ultra-small precision molding applications. |
| Complex Precision Mold Design | Complex mold structures for slides, lifters, unscrewing mechanisms, thin-wall parts, and high-performance materials. | Supports difficult molding projects requiring high precision and advanced tooling knowledge. |
| Material Selection Assistance | Engineering support for selecting suitable plastics and mold steels. | Improves mold life and product reliability. |
| Advanced Machining Capabilities | Ultra-precision CNC milling, EDM, grinding, and wirecut support. | Supports high precision mold manufacturing and complex tooling accuracy. |
| Quality Assurance | Strict inspection and testing procedures. | Ensures stable mold quality and dimensional accuracy. |
Custom Injection Mold Design Services for Automotive, Medical, Aerospace, Connector & Engineering Plastic Applications
Automotive Injection Mold Design
Precision mold design for automotive connectors, sensor housings, EV components, injection molded terminals, and high-volume plastic parts requiring exceptional dimensional consistency and long-term production stability.
Power Module Housing Mold Design
Custom mold design for power module housings, inverter enclosures, insulation structures, battery management systems, and electric vehicle power electronics requiring high precision and thermal stability.
Aerospace & Defense Mold Design
Advanced mold engineering for aerospace, satellite, UAV, and defense applications using high-performance engineering plastics including PEEK, LCP, PPS, and other lightweight structural materials.

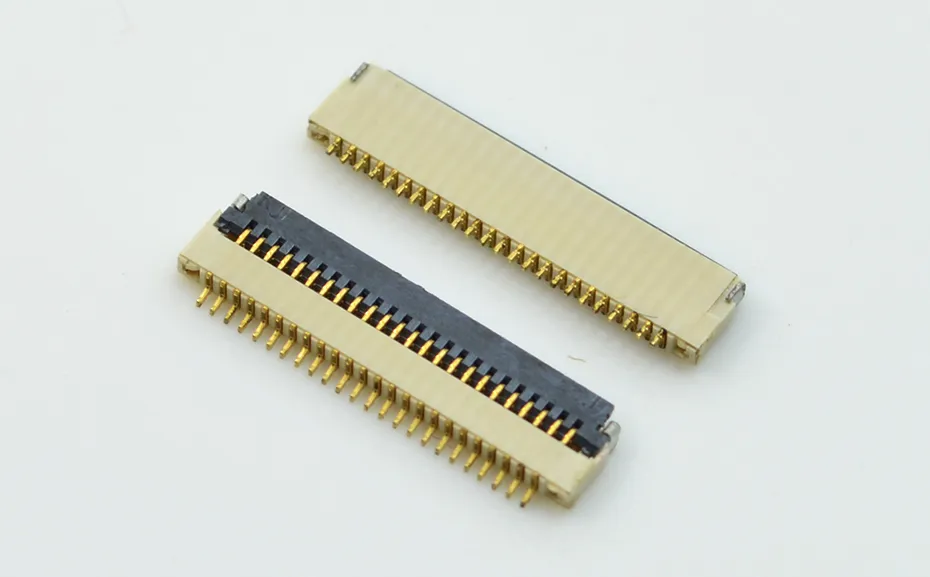

Precision Connector Mold Design
High-precision mold design for LCP connectors, PBT connector housings, terminal insert molding, press-fit connectors, and electronic components requiring micron-level accuracy and stable mass production.

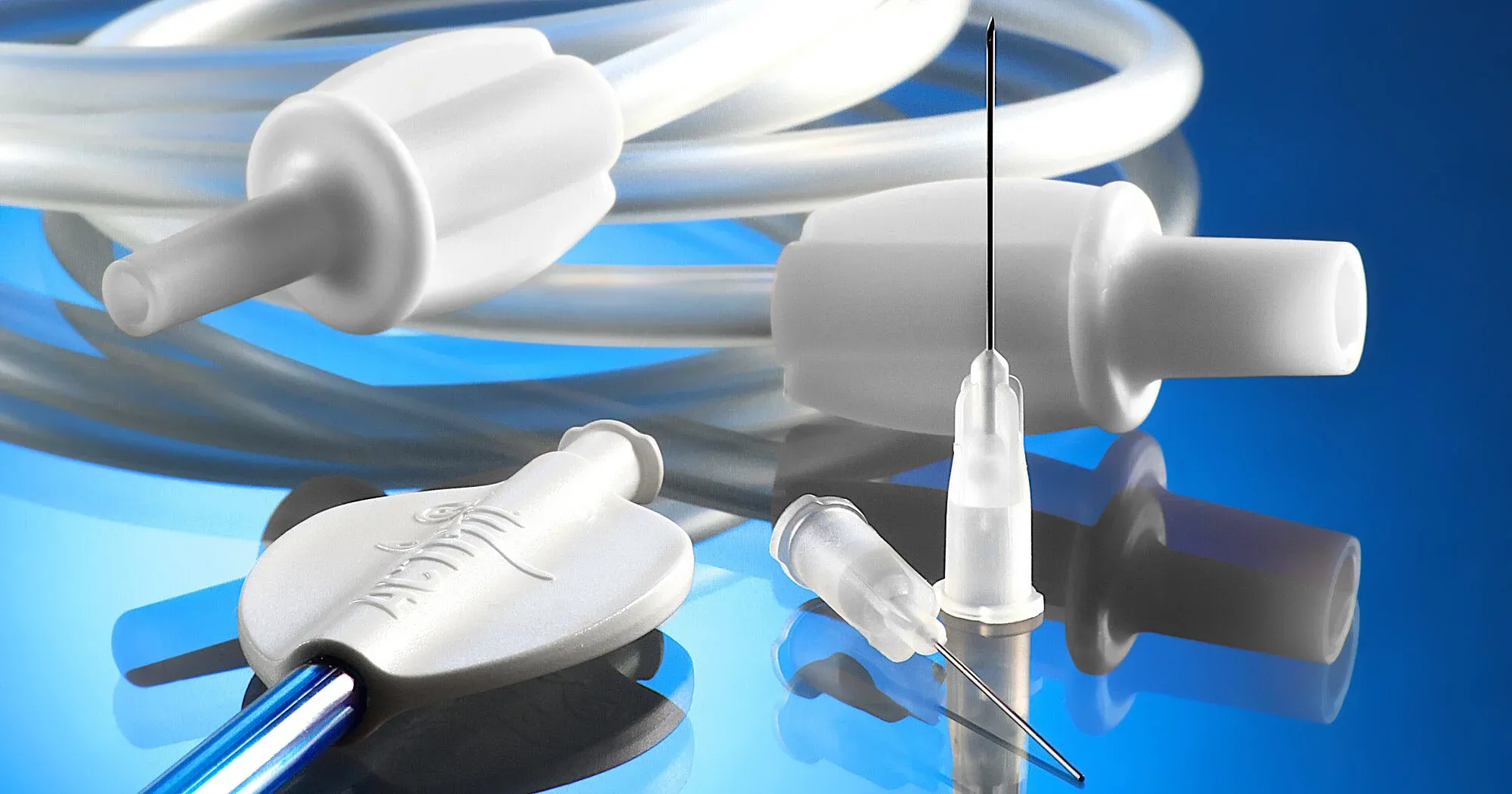

Medical Device Mold Design
Custom medical mold design for surgical instruments, diagnostic devices, transparent medical components, laboratory equipment, and precision healthcare products requiring strict dimensional control and repeatability.
Micro Injection Mold Design
Ultra-precision mold design for micro gears, micro connectors, microfluidic components, micro holes, and miniature plastic parts used in medical, electronics, and high-tech applications.
Insert Molding Tool Design
Specialized mold design for insert molding applications including metal terminals, magnets, coils, threaded inserts, bushings, pins, and electronic components integrated into plastic assemblies.
Engineering Plastic Mold Design
Precision mold development for high-performance engineering plastics including PEEK, LCP, PPS, PPSU, PA, PEI, and other high-temperature materials used in medical, aerospace, automotive, and industrial applications.
Injection Mold Design FAQ | Custom Plastic Mold Design & Engineering Questions
1. What Is Injection Mold Design?
Injection mold design is the engineering process of creating a mold structure that produces plastic parts with precise dimensions, consistent quality, optimal material flow, and efficient production cycles. A well-designed mold directly impacts part quality, tooling life, and manufacturing cost.
2. Why Is Professional Mold Design Important for Injection Molding?
Professional mold design helps prevent defects such as warpage, sink marks, flash, short shots, and dimensional inconsistencies. Proper mold engineering improves production efficiency, reduces tooling modifications, and ensures stable high-volume manufacturing.
3. What Information Is Required to Start a Mold Design Project?
To begin mold design, we typically require:
- 3D CAD files (STEP, IGES, X_T, SolidWorks)
- 2D drawings (if available)
- Material specifications
- Annual production volume
- Surface finish requirements
- Tolerance requirements
- Assembly and functional requirements
4. What Is Moldflow Analysis and Why Is It Important?
Moldflow analysis is a simulation process used to evaluate material flow, gate locations, cooling performance, pressure distribution, shrinkage, and potential molding defects before mold manufacturing begins. It reduces project risk and improves mold performance.
5. How Do You Determine the Number of Cavities in an Injection Mold?
The cavity count is determined based on:
- Annual production volume
- Part size and complexity
- Injection machine capacity
- Production cycle requirements
- Budget considerations
Single-cavity, multi-cavity, and family molds are selected according to production goals and cost optimization.
6. What Materials Can Be Considered During Mold Design?
Our mold engineering team designs tooling for a wide range of thermoplastics and engineering materials, including:
- ABS
- PC
- PP
- Nylon (PA)
- POM
- PBT
- PPS
- PPSU
- PEI
- PEEK
- LCP
- TPU
- TPE
- Liquid Silicone Rubber (LSR)
7. How Long Does the Injection Mold Design Process Take?
Most injection mold design projects are completed within 3–10 business days, depending on part complexity, mold structure, cavity count, and engineering review requirements. Complex molds with sliders, lifters, or hot runner systems may require additional design time.
8. Can You Design Molds for High-Volume Production?
Yes. We specialize in high-volume production mold design, including multi-cavity molds, hot runner systems, automated tooling solutions, and molds engineered for hundreds of thousands to millions of production cycles.
9. Do You Provide DFM (Design for Manufacturing) Analysis?
Yes. Our engineering team performs comprehensive DFM analysis before mold manufacturing to optimize wall thickness, draft angles, gate locations, cooling efficiency, parting lines, and overall manufacturability.
10. Can You Design Custom Molds for Medical, Automotive, and Aerospace Applications?
Absolutely. We provide custom mold design services for:
- Medical device components
- Automotive connectors and sensor housings
- EV battery and power electronics parts
- Aerospace engineering plastic components
- Consumer electronics
- Industrial automation equipment
- Precision connector systems
Our mold designs are engineered to meet the strict quality, tolerance, and production requirements of highly regulated industries.
